Automatic Rotary Dry Syrup 16×8 Powder Filling & Capping Machine

The Automatic Rotary Mono-block 16×8 Head Dry Syrup Powder Filing & Capping Machine is suitable for Glass, PET, HDPE.

The machine works on proven time tested vacuum & Air systems to fill powder in bottle achieving higher Speed and higher accuracy. Machine with Unique Bottle Lifting & Neck Holding system avoid spillage of powder on bottle shoulder, Neck and Body keeps bottle clean and also avoid wastage of powder. Machine with rotary Bottle Moving system ensures very high speed powder filling through independent moving funnel along with bottles for greater speed & performance without compromising speed and fill accuracy. Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.

Technical Specifications

  • ModelPMARPF-80
  • Production Rate80 bottles/minute
  • Fill Size5g to 70g
  • Bottle DiameterUpto 85 mm* Square or Rectangular bottles can be used.
  • Bottle Height100 mm* maximum
  • CapAny type of ROPP or Screw Cap
  • HumidityBelow 30% Rh required on machine to be arranged by customer
  • Filtered Compressed AirFiltered, Oil Free 2kg/cm², 5 to 7 Bar Air Pressure.
  • Vacuum28" Hg. @ 300 LPM 2 nos. and 500 LPM 1 No.
  • Power Requirement220 V, 3 HP, 1 Phase, 4 Wire System 50 Hz.
  • Conveyor Height815-940 mm
  • Machine Dimension1400mm(L) X 1250mm(W) X 2200mm(H)
  • * Specification can be changed as per clients requirements.

Application

Spice Powder, Washing Powder, Wheat Flour, Rice Flour, Chemical powder, Medicine Powder, Coffee Powder, and all powder product etc.

Salient Features

  • A Complete cGMP Model.
  • “No Bottle-No Filling” system.
  • Unique Continuous Motion of bottle movement for smoother operation.
  • Rotary bottle movement system with rotary funnel system.
  • Funnel with Unique Vibration system for filling semi free flow powder at higher speed.
  • All the contact parts with easy removal system for Cleaning/Autoclaving/Sterilization.
  • Machine construction in SS 304 material.
  • Filling accuracy of ±1% to 2 % depending on powder at controlled humidity below 30% Rh.
  • Automatic In feed and Exit of bottles through Star Wheel System.
  • No Bottle at In feed conveyor-Automatic Machine on/off system.
  • Low Air-Machine stop system, Low Vacuum- Machine stop system & Low Cap Level-Machine stop system.
  • Automatic Cap Feeder on-off system to avoid damage to the cap avoiding extra movement.
  • Toughened glass safety cabinet and blower for dust extraction.

Knock Us

For detailed specification, features, application and customisation please get in touch with our official.

Get Quote

Explore For More

Automatic Auger Type Powder Filling Machine

Automatic Auger Type Powder Filling Machine

Know More

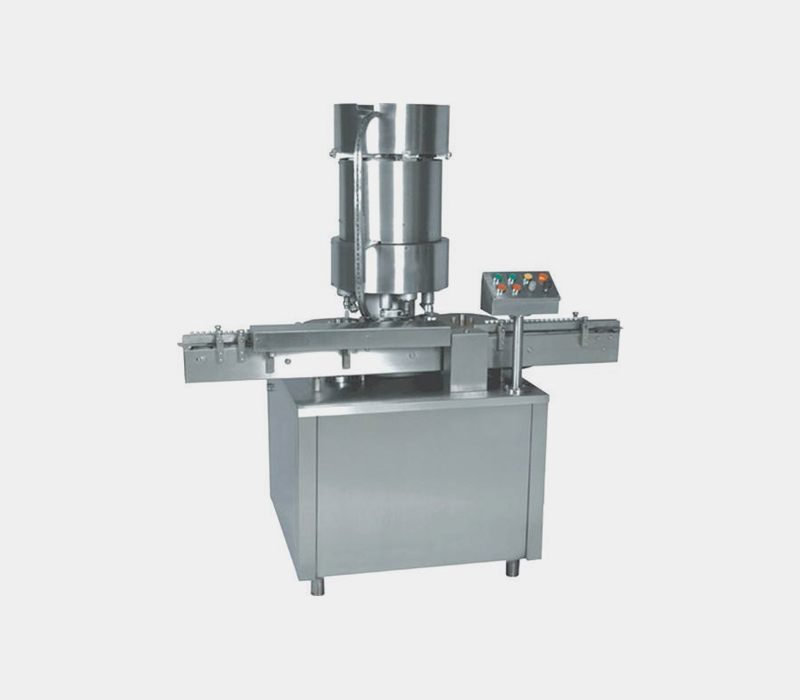

Automatic Vial Aluminium Cap Sealing Machine

Automatic Vial Aluminium Cap Sealing Machine

Know More

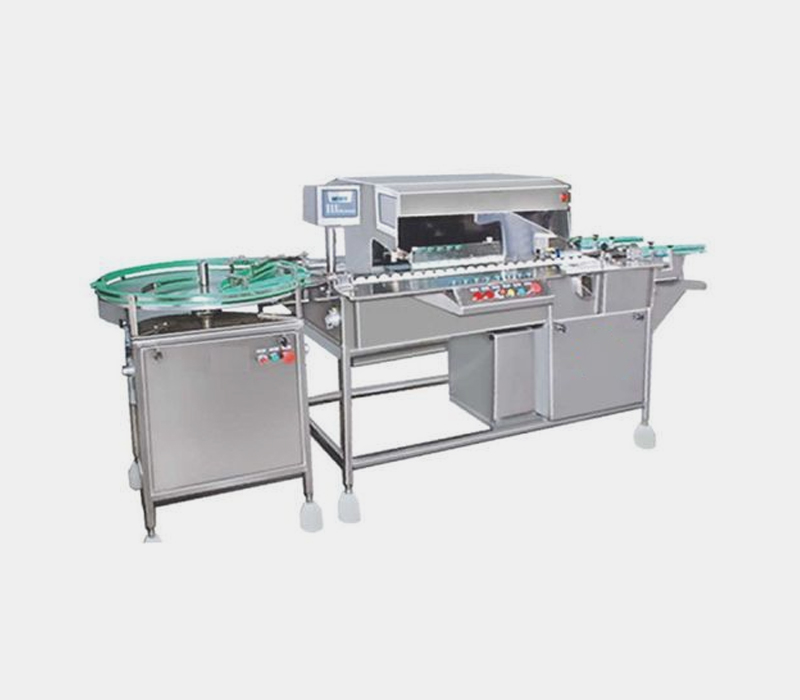

Automatic Online Vial Inspection Machine
