Automatic Rotary Vial/Ampoule Washing Machine

High Speed Automatic Rotary Vial/Ampoule Washing Machine is specially designed to wash Vials with minimum contact parts of the machine with container.

Machine with specially designed gripper system holds the container from Neck and invert till the washing operation completed and again after washing release the container on out feed feedworm system in vertical position ensures positive wash of containers. Machine is suitable to wash various sizes of containers with the help of change parts. Automatic Rotary Vial/Ampoule Washing Machine is widely uses in Pharmaceutical, Veterinary & Biotech industry for performance & cGMP demanding customers.

Technical Specifications

  • ModelPRVW-240/PRVW-120
  • Production Rate240 Vials/Ampoules per Minute
  • Vial Diameter14mm to 56mm
  • Vial Height32mm to 110mm
  • Power Requirement220 V, 2 HP, 3 Phase, 50 Hz.
  • UtilityAir-20 CFM Water-200 to 500 litres/hour depends upon container size
  • Counting systemDigital Counter
  • Water Tank & Pump3 nos. Each with 25 Litres Capacity & Centrifugal Pump
  • Machine Dimension2050mm(L) X 2000mm(W) X 1210mm(H)
  • Washing Cycle1st Wash : Recycled Water (WFI)
    2nd Wash : Compressed Air
    3rd Wash: DM Water
    4th Wash : Compressed Air
    5th Wash : Water for Injection
    6th Wash : Compressed Air
  • * Specification can be changed as per customer’s requirements.

Application

Machine is suitable for handling wash of different size of bottles basically from 2ml to 100ml sizes (round containers bottle / glass bottles / plastic bottles).

Salient Features

  • The Machine is fully based on PLC system.
  • All the contact parts with the internal surface of Vials and the wash media are made of AISI SS 316 L Stainless Steel.
  • Other Parts are made from engineering plastic, FDA approved or AISI SS 304 Stainless Steel.
  • All finishes, welding joints are processed, treated & Equipped selected in accordance with cGMP Standards.
  • 18 jets for 6 internal Washing zones.
  • 15 Cassette of Grippers each having 2 Grippers.
  • Suitable for 2 ml to 100 ml vials with the help of change parts.
  • Washing sequence can be made as per customer’s requirement.
  • 3 Pumps and 3 Tanks of 25 litres each.
  • Each washing zone with independent circuit to avoid contamination.
  • Automatic In feed and Exit of Vials.
  • Output capacity of up to 240 Vials per Minute.

Knock Us

For detailed specification, features, application and customisation please get in touch with our official.

Get Quote

Explore For More

Automatic Liquid Filling Machine

Automatic Liquid Filling Machine (Volumetric Based)

Know More
Automatic Servo-Based Vial Filling & Rubber Stoppering

Automatic Servo-Based Vial Filling & Rubber Stoppering

Know More

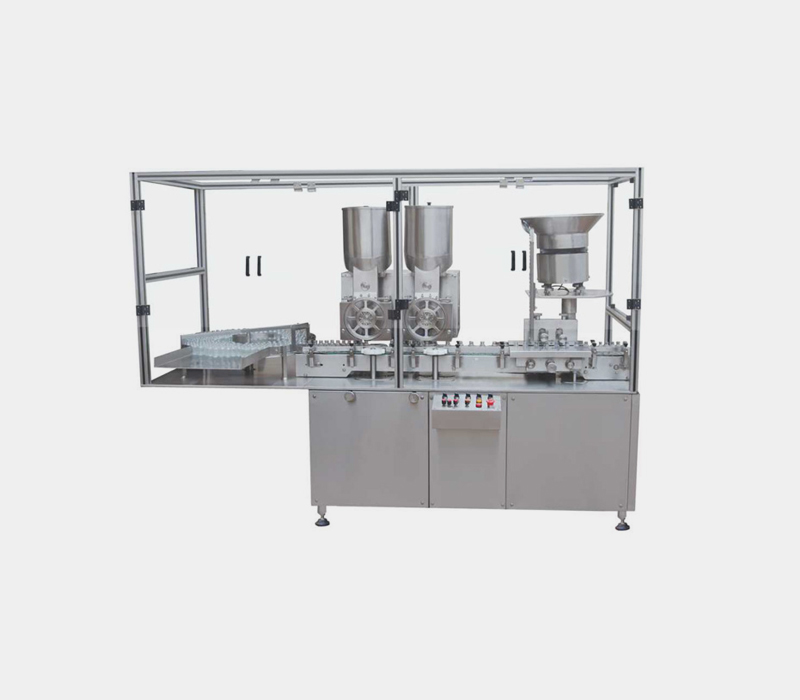

Automatic Injectable Powder Filling & Rubber Stoppering Machine
