Automatic Rotary Bottle Washing Machine

Pmech Engineers offer superior quality Automatic Rotary Bottle Washing Machines, which are based on Geneva mechanism.

This Automatic Rotary Bottle Washing Machine is available in sturdy and accurate configuration and offer superior functionality in the pharmaceutical industries. Our bottle washing machines are offered in safe packaging to avoid any damage during the transportation. Apart from the pharmaceuticals, this machine uses in Food, Chemical, Cosmetic & Beverage industry for washing glass bottles.

Technical Specifications

  • ModelPRBWM-64/PRBWM-96
  • Production Rate40-60 BPM / 80-100 BPM
  • Applicable For Square & Round Bottles
  • DirectionClock Wise
  • Air Pressure6 Bar @ 5 CFM
  • Wash Cycle4 Inner+1 Outer
  • Main Motor 0.5 HP
  • Pumps 1 HP x 2 = 2 HP
  • Power Requirement220 V, 3 Phase, 4 Wire System, 50 Hz.
  • Machine Dimension1500mm(L) X 1750mm(W) X 1300mm(H)
  • Change Parts(A) Neck Diameter: Bottle Holding Pocket, (B) Flat Container: Special Type of Cup
  • * Specification can be changed as per clients requirements.

Application

Automatic Rotary Bottle Washing Machines uses in Food, Chemical, Cosmetic & Beverage industry for washing glass bottles.

Salient Features

  • The specially designed cups are provided on the platform to accommodate any size of Bottle from 100ml to 500ml.
  • Easy loading and unloading with two rows.
  • Individual solenoid valve for each washing sequence.
  • Pumps and tanks are mounted on parable stand for easy maintenance.
  • Compact GMP model.
  • Geneva mechanism.
  • Four internal, one external and one air wash.
  • Washing Sequences and positioning of washing stations can be interchanged as required for liquid oral & injectable.
  • Stationary nozzles eliminate contamination of water cycles.

Knock Us

For detailed specification, features, application and customisation please get in touch with our official.

Get Quote

Explore For More

Automatic Rotary Vial/Ampoule Washing Machine

Automatic Rotary Vial/Ampoule Washing Machine

Know More

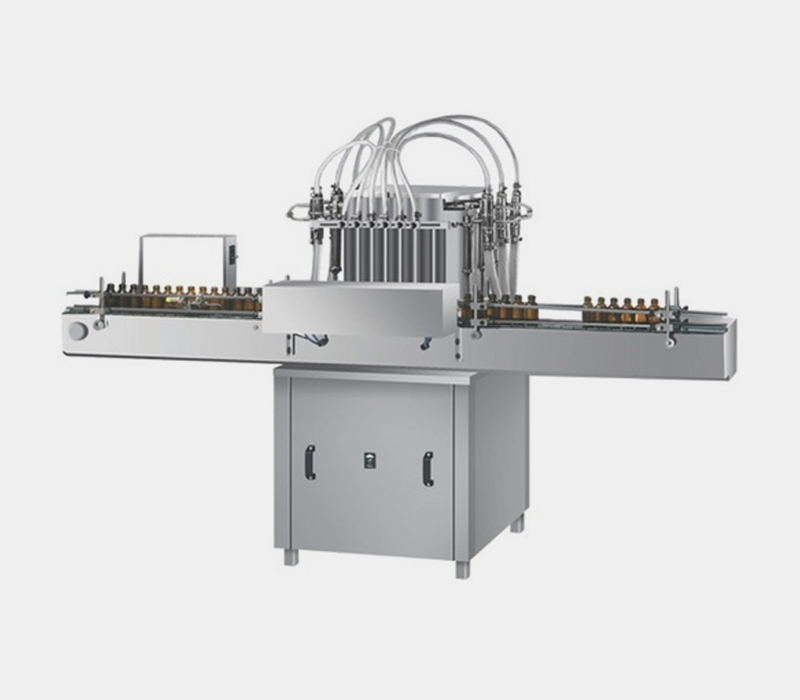

Automatic Liquid Filling Machine

Automatic Liquid Filling Machine (Volumetric Based)

Know More

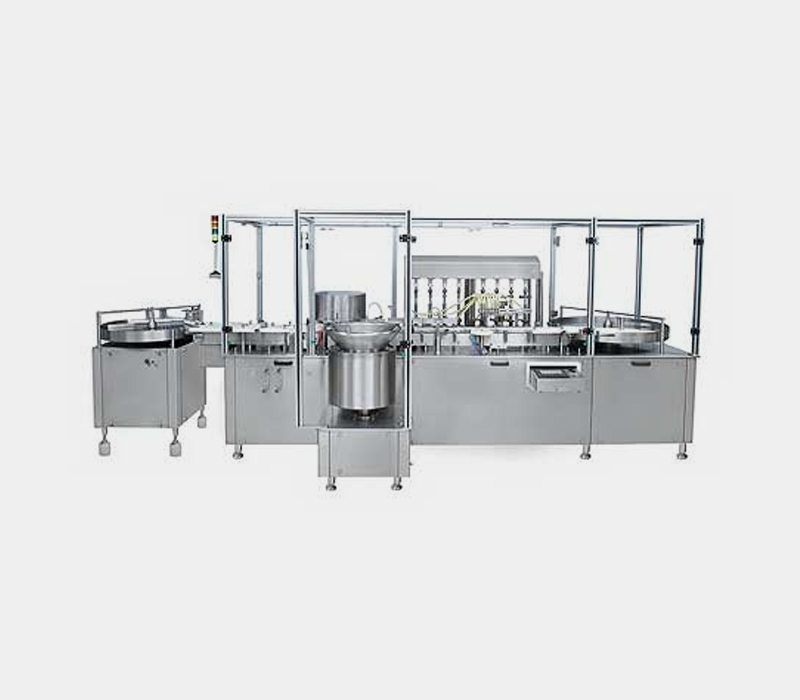

Automatic Servo-Based Vial Filling & Rubber Stoppering
